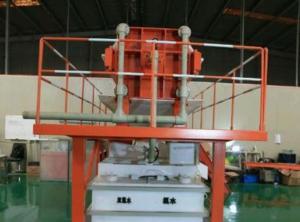

100 Micron 150 M/Min Hot Dip Galvanizing Equipment For Low Carbon Steel

Name: 100 Micron 150 MMin Hot Dip Galvanizing Equipment For Low Carbon Steel
Brand: Xinlingyu
Price: 1 USD

Brand Name : Xinlingyu

Certification : IS09001:2015 , ISO 45001:2018

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Delivery Time : 90days

Application : Drain pipe, structure pipes, construction piling pipes

Type : pipe making machine, tube mill, pipe machine, tube machine

Production Capacity : 15-150 m/min

Pipe Material : Low carbon steel, mild steel, GI coil, HRC, CRC

Thickness : 40-100 micron

Power : ~600KW

Control : Automatic

Zinc bath : Ceramic or Metal bath

Contact Now

Product Description

Low Carbon Steel Hot Dip Galvanizing Equipment 40-100 μm

Hot-dip Galvanizing Line

We provide hot-dip galvanizing line with American-Steel-Union process, which can produce sheet with small spangles or without spangles. The product has good performance of corrosion resistance and coating adhesion, used widely for manufacture of automobile, household electric appliance, building construction and base plate for color coating etc.

Material	Thickness	Width	Line speed	Plating Weight	Energy
Plain carbon steel, Low alloy steel	0.18~2.0 mm	300~1250 mm	50~180 m/min	80~300 g/m2(Double)	Electricity, Natural gas, LPG, Etc

Technical Parameter

Process method: American- steel – union

Material: cold rolled carbon structure steel, qualified carbon structure steel and low alloy steel roll

Steel type: 08AL,SPCC,SPCD ,SPCE

Layer condition: normal spangle, small spangle, skin pass spangle

Layer weight: GI:GB/T2518-88

Layer thickness range(two side): 50—300 g/m2

Layer control method: air knife

Treatment after galvanized: skin pass, stretch, anti-fingerprint coating/chromate coating

Continuous annealing furnace: horizontal/vertical , electricity, natural gas, coal gas, etc

Zinc pot: main frequency induction heating ceramic zinc pot

Skin pass: four-tandem, bottom support roller AC frequency driving

Tension leveler: single bending & single stretching /double bending & single stretching/two bending & two stretching, elongation among 0.5~2.0%

Driving control: main drive adopt SIEMENS AC complexor frequency control system
